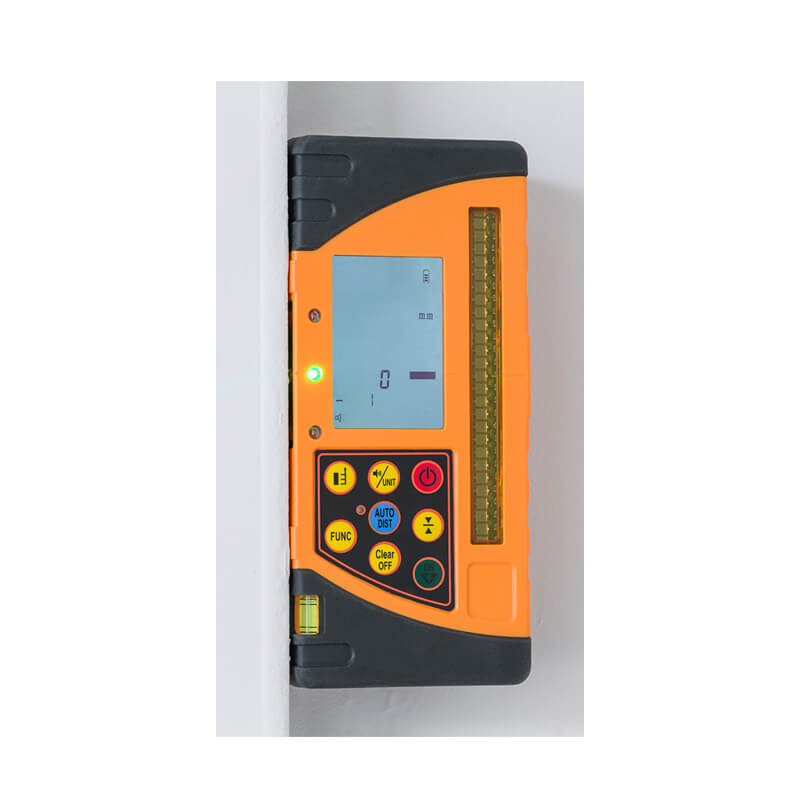

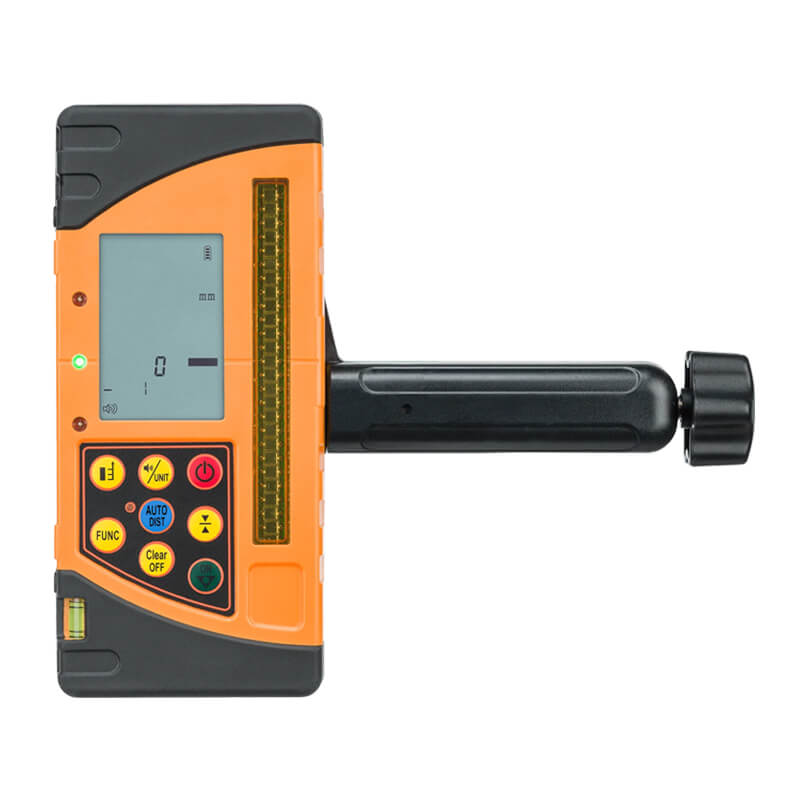

Product Description
Innovation: AUTO-DIST function measures the distance between laser plane ("0" level of receiver) and floor, wall, object automatically
Applications
- Makes the levelling staff unnecessary for height control works with a rotating laser
- Quick and contact-free height control
- Easy checking of ditch depth when working with an excavator
- Direct reading of height differences during grading work
- Fast and safe interior alignment when working at fixed distances - eliminates the need for a 2nd person holding the end of a measuring tape
Features
- Can be used with either red or green beam rotating lasers
- mm-indication of difference between laserplane and "0" level
- Extensive laser distance meter functions
Measuring functions (LASER DISTANCE METER)
- Single / permanent measurement
- Area / volume
- Pythagoras 1, height (2 points)
- Pythagoras 2, overall height (3 points)
Specifications
| Brand | geo-FENNEL GmbH |
| Laser class | 2 |
| Measuring range | 50 m |
| Length receiving window | 100 mm |
| Accuracy | ± 1 / 5 / 9 mm (laser receiver), ± 2 mm (laser range finder) |
| Measuring units | m / ft / inch |
| Tones | yes |
| Point of reference | Bottom, on-Level, top |
| Protection | IP 65 |
| Weight | 0,3 kg |
| Power supply | 3 x AA Alkaline |
| Temperature range | 0°C to +40°C (Laser range finder), -10°C - +50°C (Laser receiver) |
| Extended size | 172 x 80 x 32 mm |
| Working range | 300 m (radius) |
| Display indication | front |
| Display illumination | yes |
| LED indication | front, side |
| Magnets | top, side |
