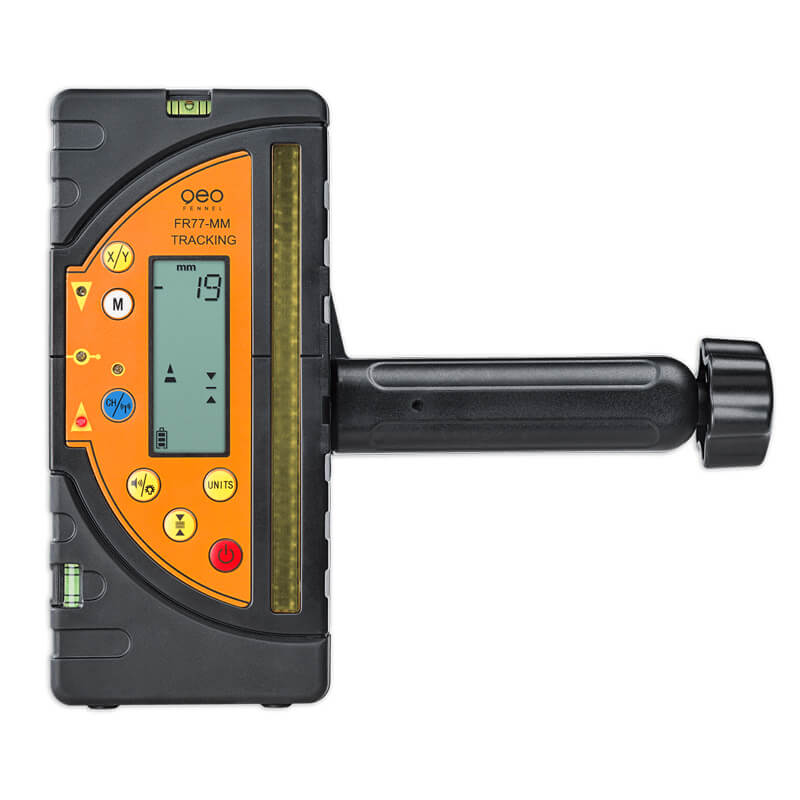

Product Description
With a digital height indicator in millimeters.
- Ultra long reception screen
- mm-indication of the difference between the laser plane and the 0th level
- Definition of the "0" position (Offset)
Features:
- For rotary lasers that use a red laser beam
- Ultra long reception screen
- mm-indication of the difference between the laser plane and the 0th level
- The segments of the display indication increase / decrease proportionally
- Definition of the "0" position (Offset)
- Screen illumination
- Robust buckle
- Special stand for connection
Specifications
| Brand | geo-FENNEL GmbH |
| Accuracy | ± 2 / 5 / 9 mm |
| Accuracy mm-indication | ± 1 mm |
| Working range class 2-Laser | 150 m |
| Working range class 3R-Laser | 350 m |
| Length receiving window | 125 mm |
| Length receiving area mm-indication | 100 mm |
| Offset range (0SET) from base line | ± 20 mm |
| Measuring units | mm, cm, in, fraction of in |
| Signal tones | 3 |
| LED indication | front, side, back |
| Display indication | front, back |
| Temperature range | -10°C to +50°C |
| Power supply | Alkaline |
| Operating time | 110 h |
| Magnets | top, side |
| Protection | IP 67 |
| Dimensions | 170 x 77 x 32 mm |
| Weight | 0.5 kg |
