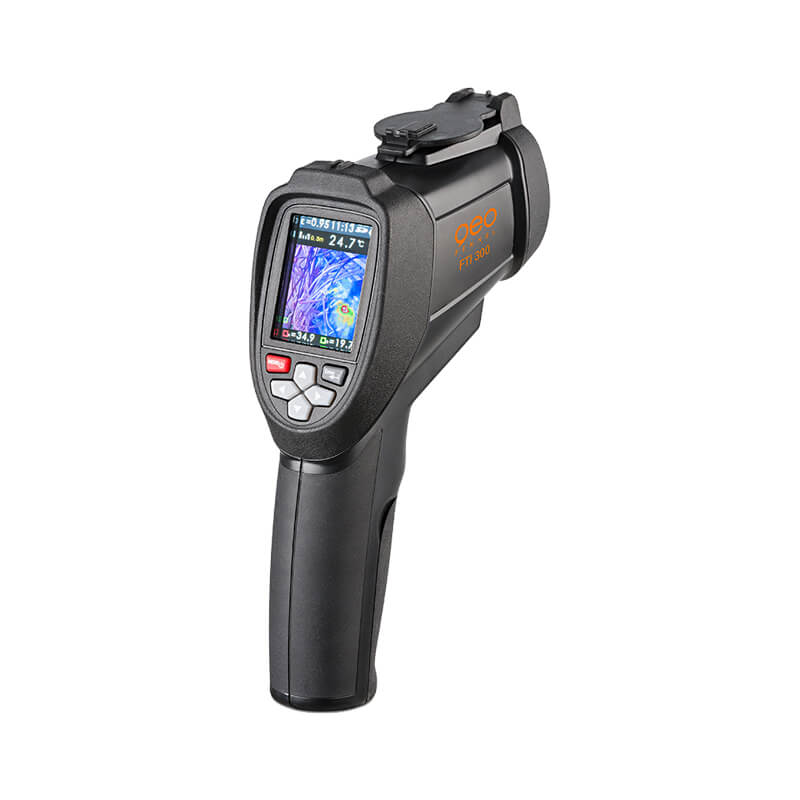

geo-FENNEL FTI 300
Product information “FTI 300” Thermal imaging camera for non contact measurement of surface temperature. Trades and tasks: Heating and ventilating installations, building insulation (heat loss), plumbing, electric, electronic, electro-mechanical and mechanical engineering, routine maintenance Easy to locate hot and cold spots on electrical and mechanical installations. Features Automatic indication of hot / cold spot with configurable alarm function PIP-function for blending of visible and infrared image (0-100%) for optimized orientation in the picture 6 colour palettes Memory for 6000 images / data transfer to PC for subsequent analysis
Documents
Specifikacije
| Brand | geo-FENNEL GmbH |
| IR sensor resolution | 32 x 31 Pixel |
| Temperature range | -20°C to +300°C |
| Extended size | 205 x 155 x 62 mm |
| Weight | 410 g |
| PC interface | USB 2.0 |
| Memory size | 6000 pictures |
| Additional memory | MicroSD card 8 GB |
| Measurement cursors | 3 (centre, max, min) |
| Accuracy | ± 2% of the reading or ± 2°C (at 25°C) |
| PIP | IR image with visible image in 6 steps (0 – 100%) |
| Thermal sensitivity | < 0,15°C (150 mK) |
| Display | 2.2″ TFT colour LCD, 320 x 240 pixel |
| Colour palettes | greyscale (black hot), greyscale (white hot), hot metal, ironbow, rainbow, rainbow (high contrast) |
| Focusing | fixed |
| Field of view (FOV) | 40° x 40° |
| Power supply | 3.7 V Li-Ion battery |
