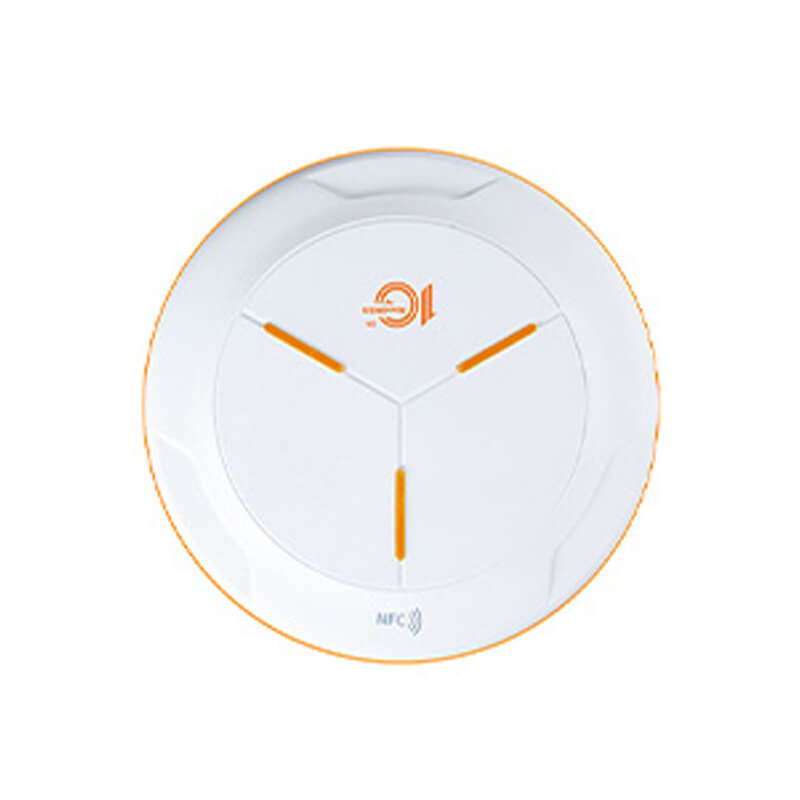

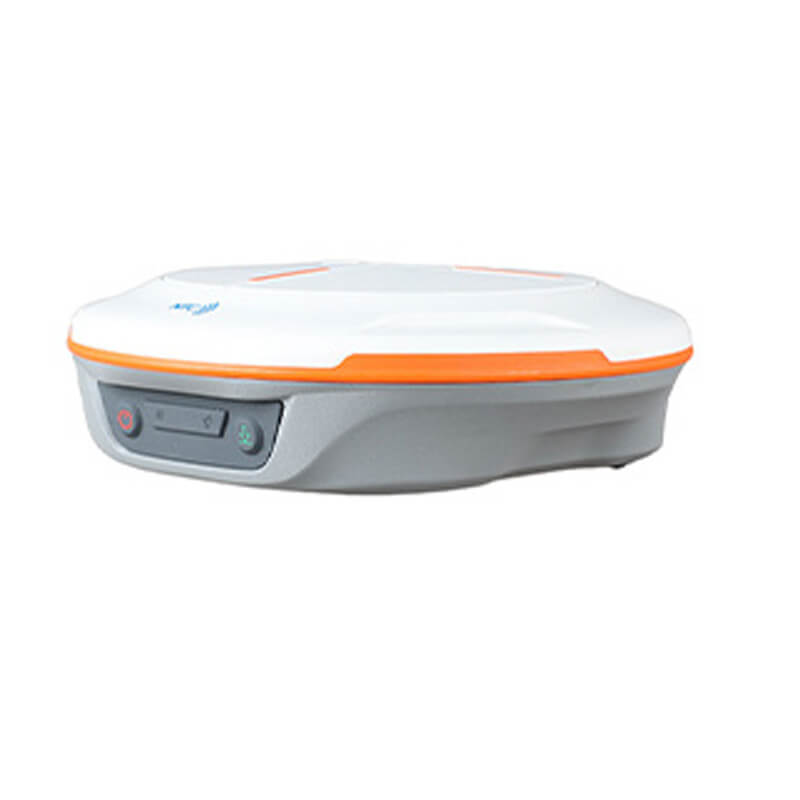

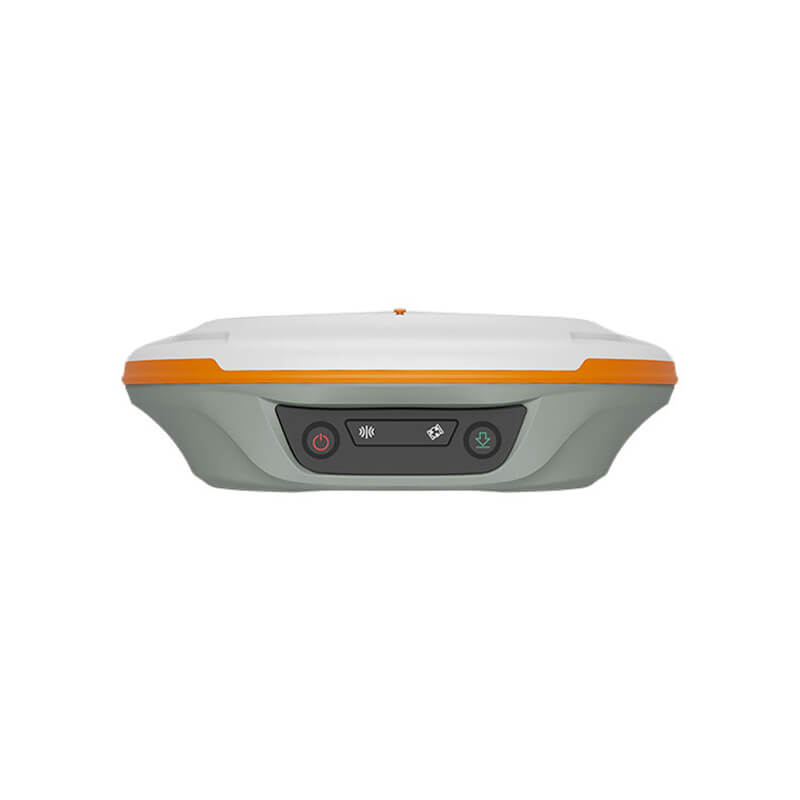

ComNav N2 Palm GPS / GNSS Receiver
1590 channels and 50+ satellites tracking capabilities
Tracking all running and planned constellations, including GPS, BDS-2, BDS-3, GLONASS, Galileo, QZSS, IRNSS and SBAS
Up to 15km work range with enhanced UHF
Up to 60°tilt with 2.5 cm accuracy
20+ hrs continuous work with 10000mAh batteries
Support NFC and Bluetooth connection
IP67 dust- and waterproof for harsh environments
Documents
Product description - ComNav N2 Palm GPS / GNSS Receiver
3rd Generation IMU
By compensating for up to 60° tilt, N2 eliminates challenges associated with surveying concealed or unsafe points and maintains accuracy within 2.5cm. Also, being immune to magnetic disturbance increase reliability.
Easy Connection
With advanced NFC, N2 can be connected automatically with a single touch. Dual mode Bluetooth 5.0 allows users to connect at higher distance and low energy standards. Tedious matching is a thing of the past.
Enhanced UHF
Integrated UHF ranges from 410 to 470 MHz. Up to 15km long work range makes it work-efficient and energy-saving for field work. It can be used as either a base station or a rover in largely extended working scenarios.
Longer Battery Life
10000mAh Battery makes 20+ hours day&night work possible. QC2.0 helps N2 full-charged in 5 hours, dealing with the worry about power outage.
Specifications
| Brand | ComNav Technology Ltd |
| Channels | 1590 |
| Gps | L1C/A, L1C, L2P, L2C, L5 |
| BDS | B1I, B2I, B3I,BIC,B2a,B2b |
| Glonass | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6c, E5 AltBOC |
| QZSS | L1C/A, L2C, L5, L1C |
| IRNSS | L5 |
| SBAS | L1C/A, 1 m 3D RMS |
| Signal Recapture | ≤1s |
| RTK Initialization Time | ＜10s |
| Static and Fast Static | Horizontal 8mm+1ppm Vertical 15mm+1ppm |
| Standalone | 1.5m 3D RMS |
| Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz |
| Reliability | ≥99% |
| Internal Memory | 8GB(default),16GB/32GB(optional) |
| Tilt Survey | Up to 60°tilt with 2.5 cm accuracy |
| Dimensions | 149±1mm(φ), 48±1mm(H) |
| Weight | 670g including battery |
| Working Temperature | -30℃~+65℃ |
| Storage Temperature | -40℃~+85℃ |
| Humidity | 100% non-condensing |
| Waterproof and Dustproof | IP67 |
| Voltage | 5/9V |
| Power Consumption | RX mode≤1.8W, TX mode≤3.6W |
| Over Current Protection Voltage | 30V, VBUS 9.99V |
| Charging Time | 30V, VBUS 9.99V Charging Time <5h(QC2.0) |
| Battery life | ≥20h |
| Bluetooth | Bluetooth 5.0 Dual-Mode |
| UHF Power Consumption | 0.5W, 1W, 2W adjustable |
| Air Baud Rate | 9600/19200 adjustable |
| UHF Channel Space | Tx/Rx with full frequency range from 410-470MHz |
| 4G modem | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| Serial Port | Support serial communication |
| USB | Type-C |
| Warranty | 1 year |
