Product Description
The flexible 3-in-1 solution for using point and line lasers in all kinds of applications: Floor-to-ceiling pillar, tripod and wall mount in one!
No matter what the application possibilities of the construction site - no problem, they are equipped.....

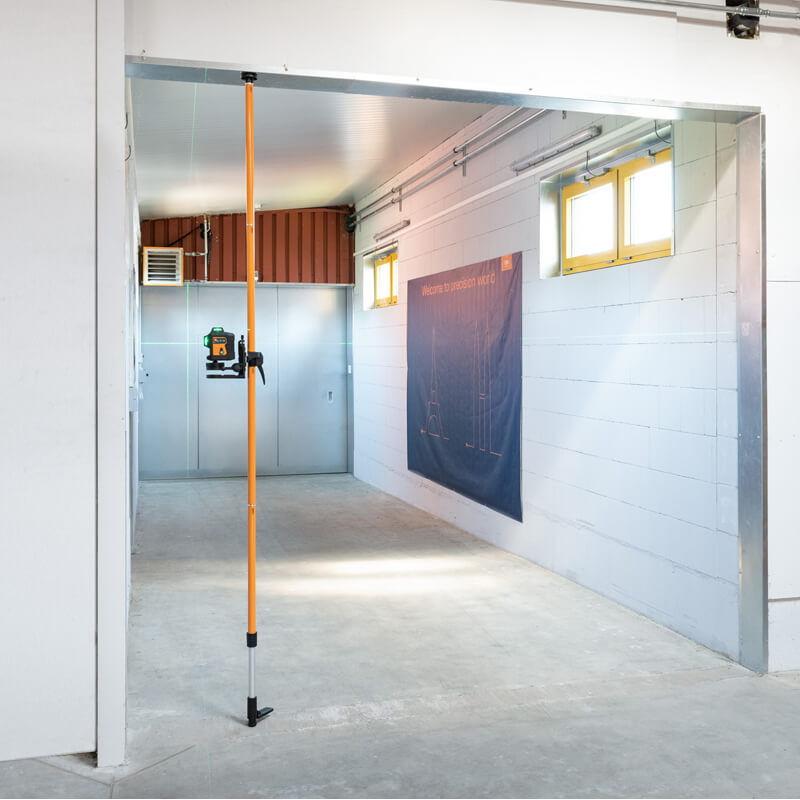

Floor-to-ceiling pillar
- Floor-to-ceiling pillar (1-leg tripod) to be fixed between floor and ceiling
- The instruments platform can be clamped steplessly in any position and can be positioned in height with mm precision using the integrated fine drive.
- 5 sturdy metal sections, with graduation in 5 mm & 1/4 inch steps, connection with 5/8" metal thread
- Working range: platform height from 0.2 m to 3.55 m

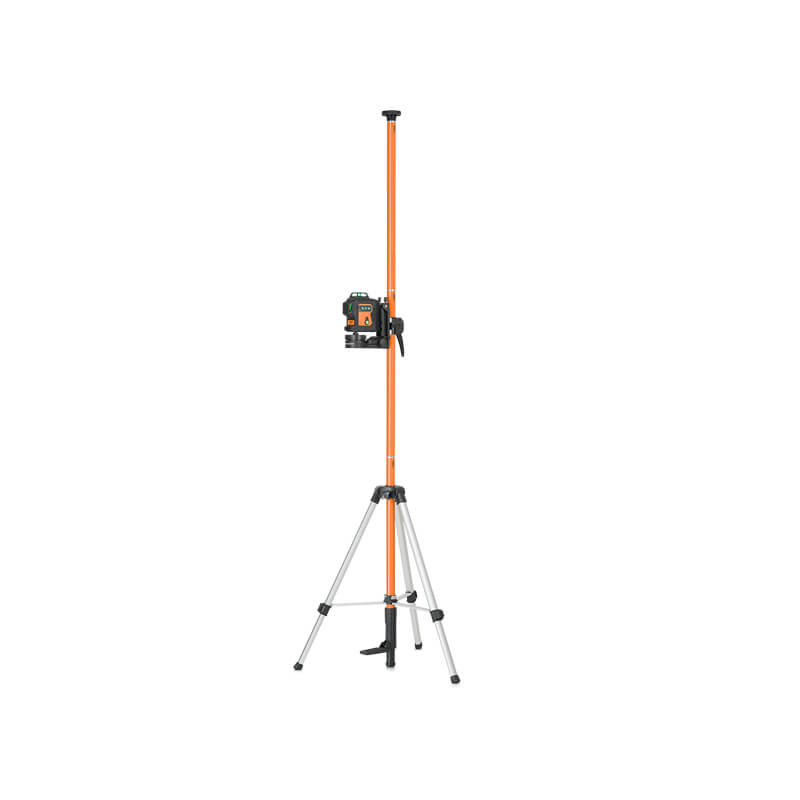

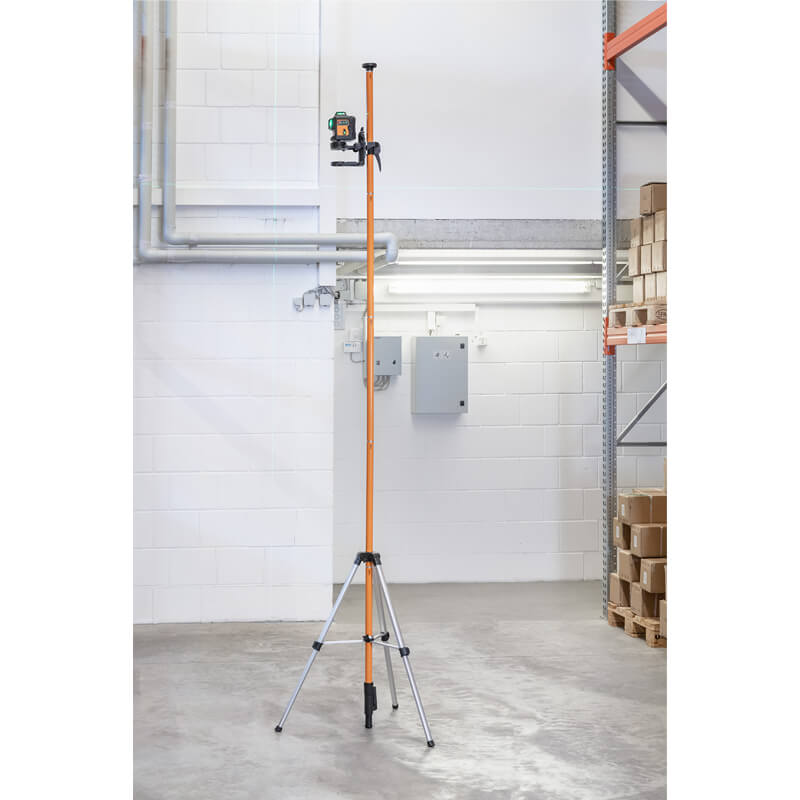

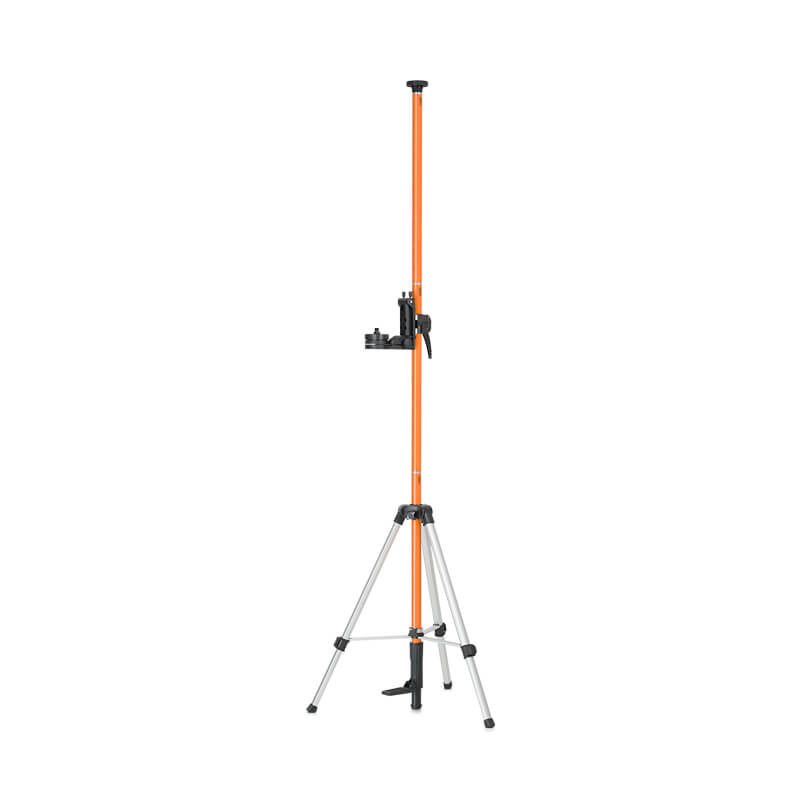

Floor-to-ceiling pillar & Tripod
- For free-standing positioning anywhere in the room, the clamping column is mounted in the stand. 2 fastening screws secure the clamping column in the stand.
- Working range: platform height from 0.5 m to 3.55 m
Multi-functional mount
- Removable unit bracket for mounting on walls, drywall rails and tripods with 5/8" connection
- Height-adjustable platform with integrated fine drive, adjustment range 85 mm
- Horizontal adjustment 360° with endless fine drive on both sides
- Holder for clamp fixing to drywall wall rails
- Magnets on back side
- Screw hole for wall suspension
- For devices with 1/4" & 5/8" connection
Specifications
| Brand | geo-FENNEL GmbH |
