NEDO Levelling Set X24 with 5 m levelling staff + aluminium tripod

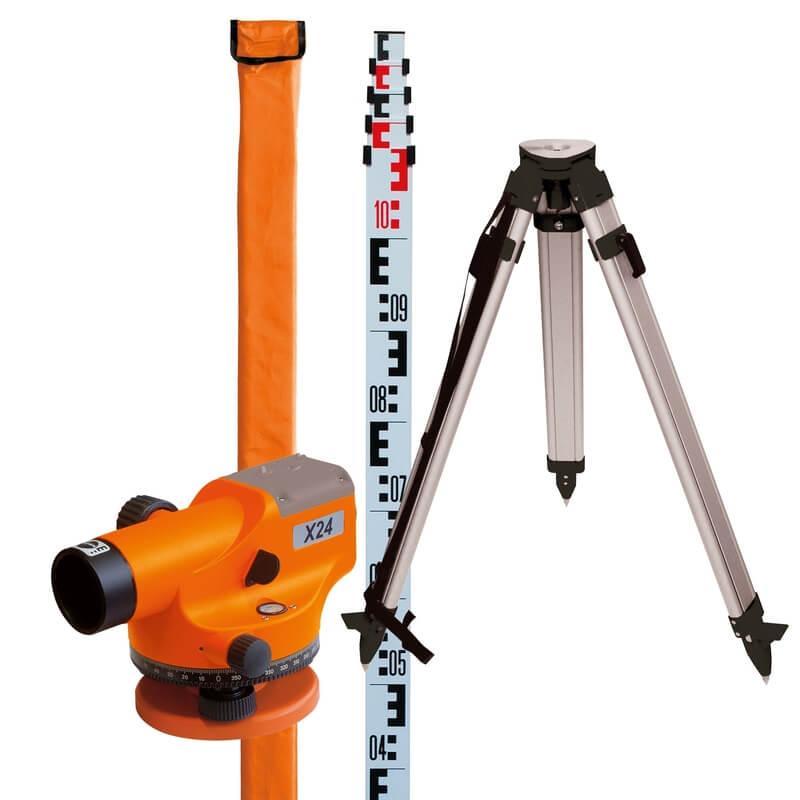

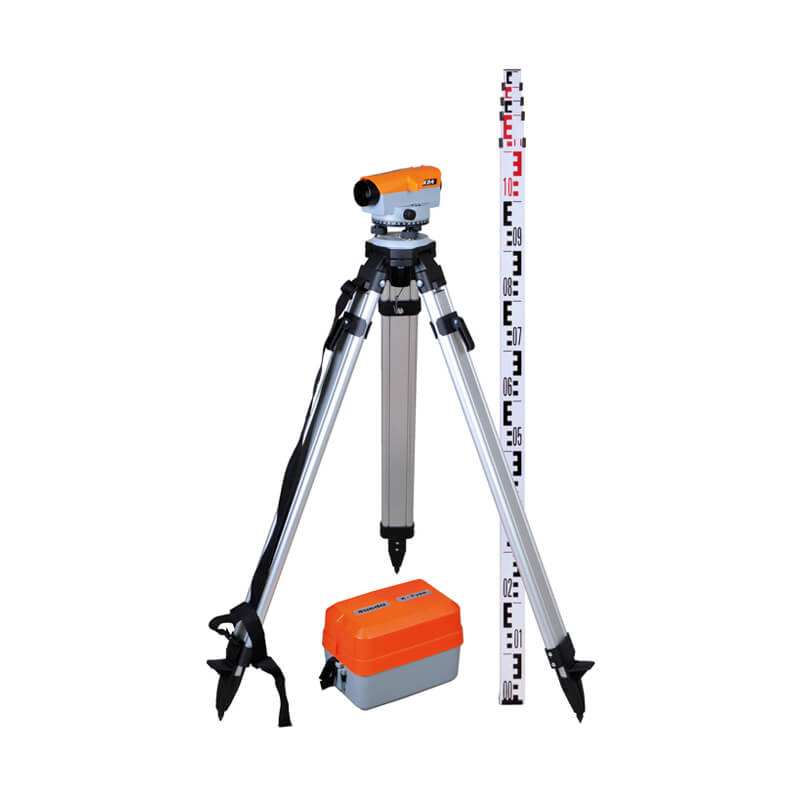

Included:
• Builders’ level X20/X24
• 5m telescopic levelling staff with bag Ref.-No. 345 122-613
• Aluminium tripod Ref.-No. 200 215-61
Nedo X-levels are top-quality builders’ levels which meet the very highest demands. These builders’ levels feature particularly bright optics, a large objective aperture, a sturdy air-damped compensator and quality workmanship – just right for use under eXtremely tough conditions.

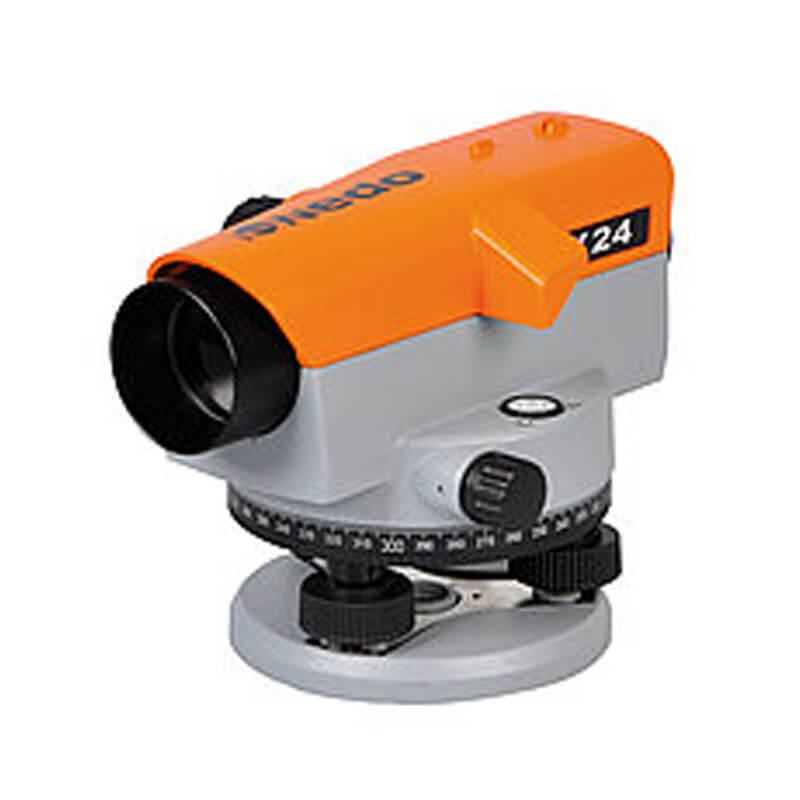

Product Description - Nedo Builders' level X24
Features:
- Automatic builders’ level with 24x and 32x magnification
- Bright optics with large objective aperture
- Rugged metal housing
- Sturdy, reliable air-damped compensator
- High-contrast image
- Inspection record
- Comes with plumb bob, adjusting pin and robust case
- Also available as a set
Specifications
| Brand | Nedo GmbH & Co. KG |
| Magnification | 24X |
| Clear objective aperture | 36 mm |
| Shortest focusing distance | 0.6 m |
| Multiplication factor | 100 |
| Working range | +/- 15' |
| Accuracy | +/- 0.5'' |
| Horizontal circle | 400 gon |
| Circular bubble | 8'/2 mm |
| Protection | IP 54 |
| Weight | 1.7 kg |
| Warranty | 1 year |
