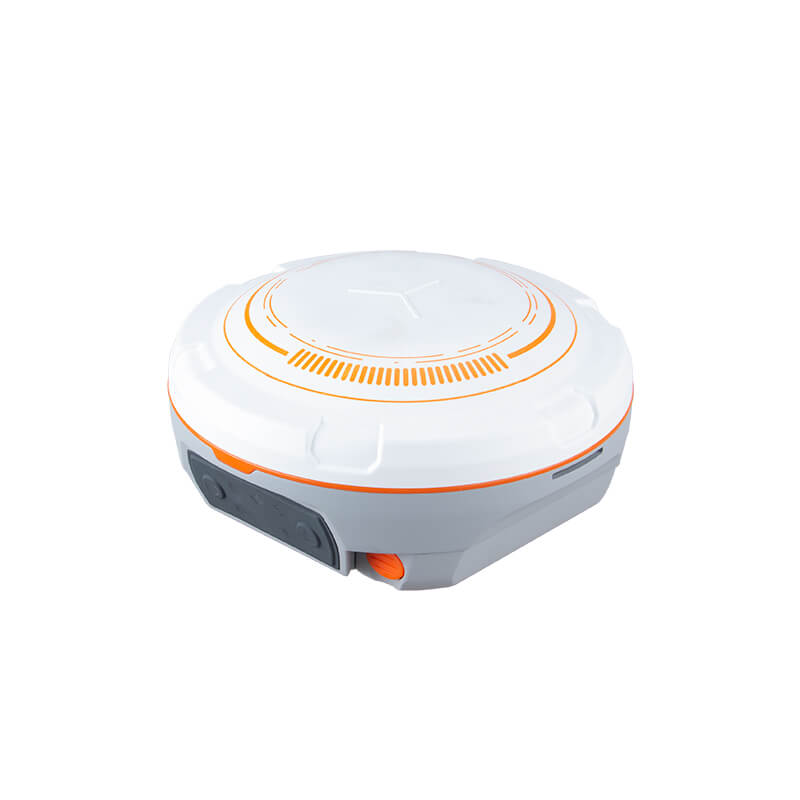

ComNav N3 IMU GPS / GNSS Receiver

https://geoinfodoo.odoo.com/web/image/product.template/1975/image_1920?unique=0cba272
(0 review)

New K8-platform
Integrated with new K8-platform, N3 equipped with powerful tracking capability for more than 50 satellites, stronger computing capability and lower power consumption.

Upgraded IMU
Adopted the improved INS algorithm, the second generation of IMU obtains simpler initialization process and 2cm high accuracy.

Enhanced UHF
Up to 15km long work range with 2W power consumption, making it work-efficient and energy-saving for your survey tasks. Integrated UHF ranges from 410 to 470 MHz with 250 KHz channel spacing

5500.00 € 5500.0 EUR 5500.00 € Tax Excluded

5500.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Channels
  • Gps
  • BeiDou Global Signal
  • Glonass
  • Galileo
  • QZSS
  • IRNSS
  • SBAS
  • Static and Fast Static
  • Long Observations Static
  • UHF/NTRIP RTK
  • Size(W × H)
  • Weight
  • External power supply
  • Power Consumption
  • Working Temperature
  • Storage Temperature
  • Shock
  • Waterproof and Dustproof
  • 1 Serial port (7 pin Lemo)
  • WIFI
  • 4G modem
  • Bluetooth
  • 5 LEDs
  • Position data output rates
  • Calibration-free IMU
  • Warranty

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Static and Fast Static 2.5 mm + 0.5 ppm Horizontal ili 5 mm + 0.5 ppm Vertical
Long Observations Static 3 mm + 0.1 ppm Horizontal ili 3.5 mm + 0.4 ppm Vertical
UHF/NTRIP RTK 8 mm + 0.5 ppm Horizontal ili 15 mm + 0.5 ppm Vertical
1 Serial port (7 pin Lemo) aud rates up to 921,600 bps ili - Transmit power: 0.5-2 W adjustable ili - Range: 15 km
4G modem LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 ili B19/B20/B25/B26/B28 ili LTE-TDD: B38/B39/B40/B41 ili LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 ili GSM: B2/B3/B5/B8
Brand ComNav Technology Ltd
Channels 1198
Gps L1 C/A, L2C, L2P, L5
BeiDou Global Signal B1C, B2a, B2b
Glonass L1 C/A, L1P, L2 C/A, L2P
Galileo E1, E5a, E5b, E6, E5 AltBOC
QZSS L1C, L2, L5, L1C/A
IRNSS L5
SBAS WAAS, EGNOS, MSAS, GAGAN
Size(W × H) Φ 15.5 cm × 7.3 cm
Weight 1.2 kg with two batteries
External power supply 7V~28V
Power Consumption 1.7 W
Working Temperature -40 ℃ to + 65 ℃
Storage Temperature -40 ℃ to + 85 ℃
Shock Designed to survive a 2m drop onto concrete
Waterproof and Dustproof IP67
WIFI 802.11b/g/n
Bluetooth V 4.0 protocol, compatible with Windows OS and Android OS
5 LEDs Indicating Satellites Tracking, RTK Corrections Data, GPRS Status and Power
Position data output rates 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Calibration-free IMU Up to 60°tilt with 2 cm accuracy
Warranty 1 year
