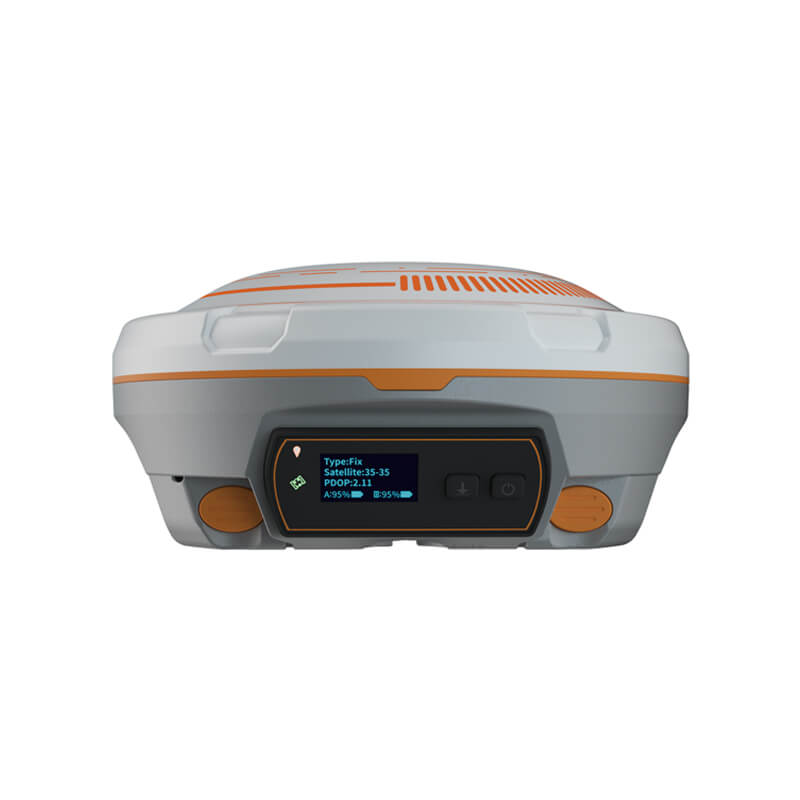

ComNav N5 GPS / GNSS Receiver

https://geoinfodoo.odoo.com/web/image/product.template/1982/image_1920?unique=bf10b24
(0 review)

Embedded with IMU engine, upgraded with K8-platform for full constellation tracking, and equipped with long range enhanced UHF, user-friendly OLED display, 6800mAh large Li-battery, N5 GNSS receiver provides a more convenient, reliable, and efficient experience for field workers, especially when work together with Survey Master data collection software.

6000.00 € 6000.0 EUR 6000.00 € Tax Excluded

6000.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Satellite tracking
  • Static and Fast Static
  • Long Observations Static
  • ACCURACY - RTK H/V (MM + PPM)
  • Size (W x H)
  • Weight
  • Power Consumption
  • Input voltage
  • Battery life
  • Internal Memory
  • Operating temperature
  • Storage Temperature
  • Humidity
  • Waterproof and Dustproof
  • Shock
  • 1 Serial port (7 pin Lemo)
  • UHF modem
  • WIFI
  • 4G modem
  • 2 LEDs
  • 1 Display
  • Bluetooth
  • Calibration-free IMU integrated for Tilt Survey
  • Warranty

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Product Description - ComNav N5 GPS/GNSS Receiver


Full-constellation tracking


The N5 tracks 1198 channels for all running satellites constellations, which includes GPS, GLONASS, Beidou, Beidou global, Galileo, QZSS, IRNSS, SBAS and L-Band.


IMU


In-built IMU and adopted self-developed core algorithm, with the accuracy less than 2.5cm, ensure the accuracy anywhere and anytime, without being affected by geomagnetic.


Enhanced OLED Display


The sunlight readable OLED display provides a clear, easy-to read viewing experience, and handles all of surveying operations on screen freely.

Specifications

Satellite tracking GPS: L1C/A, L2C, L2P, L5 ili BeiDou Global Signal: B1C, B2a, B2b ili GLONASS: L1C/A, L1P, L2C/A, L2P, L3 ili Galileo: E1, E5a, E5b, E6, E5 AltBOC ili QZSS: L1C, L2, L5, L1C/A ili IRNSS, L- Band ili BeiDou: B1, B2, B3 ili SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
Static and Fast Static Horizontal: 2.5 mm + 0.5 ppm ili Vertical: 5 mm + 0.5 ppm
Long Observations Static Horizontal: 3 mm + 0.1 ppm ili Vertical: 3.5 mm + 0.4 ppm
ACCURACY - RTK H/V (MM + PPM) Horizontal: 8 mm+1 ppm ili Vertical: 15 mm+ 1 ppm
UHF modem Transmit power: 0.5-2 W adjustable ili Range: 15 km in ideal environment
4G modem LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 ili B19/B20/B25/B26/B28 ili LTE-TDD: B38/B39/B40/B41 ili LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 ili GSM: B2/B3/B5/B8
Brand ComNav Technology Ltd
Size (W x H) 15.5 cm x 7.3 cm
Weight 1.2 kg with two batteries
Power Consumption 1.7 W
Input voltage 7-28 VDC
Battery life 2 x 3400 mAh, up to 25 hours typically
Internal Memory 8 GB
Operating temperature -40 C to + 65 C (-40 F to 149 F)
Storage Temperature -40 C to + 85 C (-40 F to 185 F)
Humidity 100% no condensation
Waterproof and Dustproof IP67
Shock Designed to survive a 2 m drop onto concrete
1 Serial port (7 pin Lemo) Baud rates up to 921,600 bps
WIFI 802.11b/g/n
2 LEDs indicating Satellites Tracking and RTK Corrections data
1 Display OLED Display
Bluetooth V4.0, compatible with Windows OS and Android OS
Calibration-free IMU integrated for Tilt Survey Up to 60 tilt with 2.5 cm accuracy
Warranty 1 year
