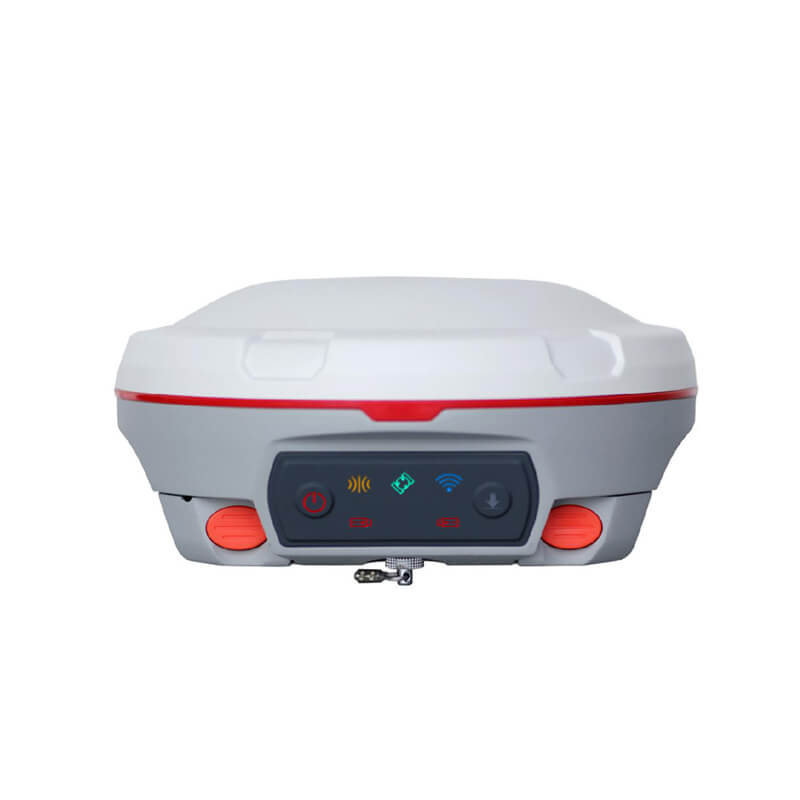

ComNav T30 IMU GPS / GNSS Receiver

https://geoinfodoo.odoo.com/web/image/product.template/1976/image_1920?unique=7f1d724
(0 ocena)

4200.00 € 4200.0 EUR 4200.00 € Tax Excluded

4200.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Channels
  • Satellites tracking
  • Network RTK
  • Post Processing Kinematic(PPK)
  • Standalone
  • SBAS
  • DGPS
  • Static and Fast Static
  • Long Observations Static
  • Real Time Kinematic
  • Weight
  • Power Consumption
  • Battery life
  • Internal Memory
  • Waterproof and Dustproof
  • UHF modem
  • WIFI
  • Bluetooth
  • Warranty

Ova kombinacija ne postoji.

Kontaktirajte nas

Uslovi ponude i plaćanja
30 dana garancije na povraćaja novca
Dostava: 2-3 radna dana

Podeli

Product Description - ComNav T30 IMU GPS/GNSS Receiver


Multi-constellation tracking

The T30 IMU receiver tracks 1198 channels for all current and future satellites signals, including GPS, GLONASS, Beidou, Beidou global, Galileo, SBAS and L-Band.

IMU

With built-in and calibration-free IMU, T30 IMU receiver supports up to 60° tilt survey within the accuracy of 2.5cm, providing more convenient and reliable survey work.

Intuitive workflow

The T30 IMU receiver provides intuitive and easy survey workflow via Survey Master Wizard function, improving efficiency for both beginners and professional surveyors.

Specifikacije

Satellites tracking GPS: L1 C/A, L2C, L2P, L5, BeiDou: B1, B2, B3, BeiDou Global Signal: B1C, B2a, GLONASS: L1 C/A, L1P, L2 C/A, L2P, Galileo: E1, E5a, E5b, E6, AltBOC, QZSS, IRNSS
Network RTK 8 mm + 0.5 ppm Horizontal 15 mm + 0.5 ppm Vertical, 15 mm + 0.5 ppm Vertical
Post Processing Kinematic(PPK) 5 mm + 1 ppm Horizontal, 5 mm + 1 ppm Vertical
Static and Fast Static Horizontal: 2.5 mm + 0.5 ppm, Vertical: 5 mm + 0.5 ppm
Long Observations Static Horizontal: 3 mm + 0.1 ppm, Vertical: 3.5 mm + 0.4 ppm
Real Time Kinematic 8 mm + 1 ppm Horizontal, 15 mm + 1 ppm Vertical
Waterproof and Dustproof IP67, Designed to survive a 2 m drop onto concrete
UHF modem Transmit power: 0.5-2 W adjustable, Range: 1-5 km
Brand ComNav Technology Ltd
Channels 1198
Standalone 1.5 m 3D RMS
SBAS 1 m 3D RMS
DGPS <0.4 m RMS
Weight 1.2 kg with two batteries
Power Consumption 1.92 W
Battery life 2 x3400 mAh, up to 16 hours typically
Internal Memory 8 GB
WIFI 802.11b/g/n
Bluetooth V4.0, compatible with Windows OS and Android OS
Warranty 1 year
