  2. GeoMax Zoom 25

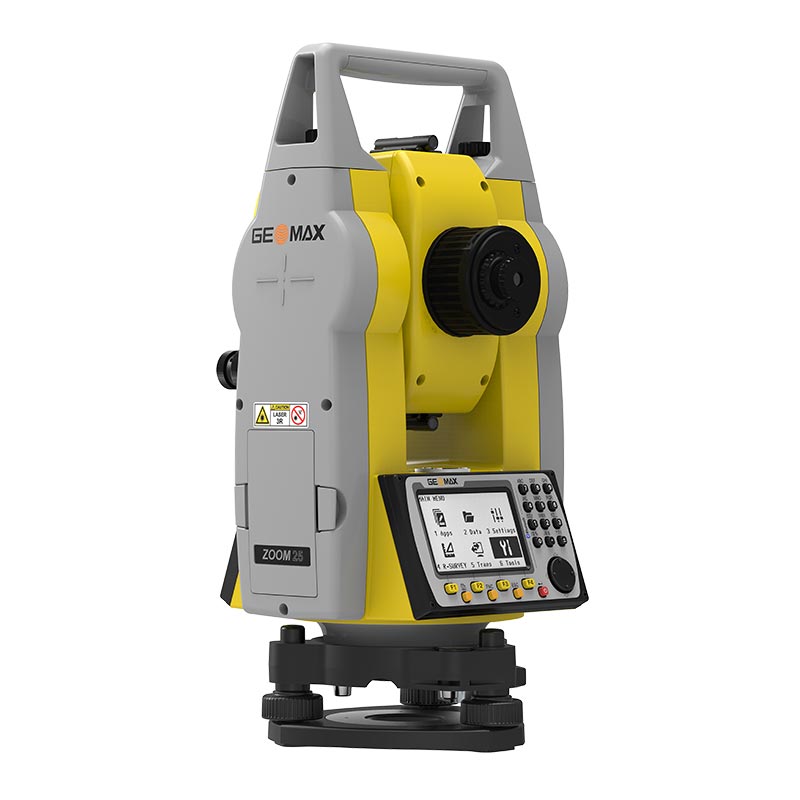

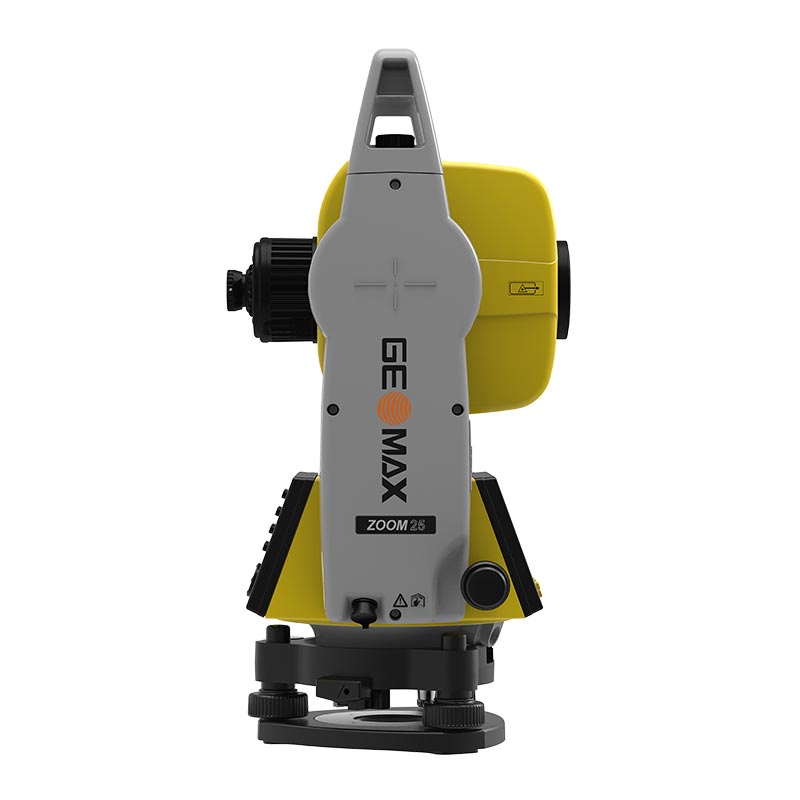

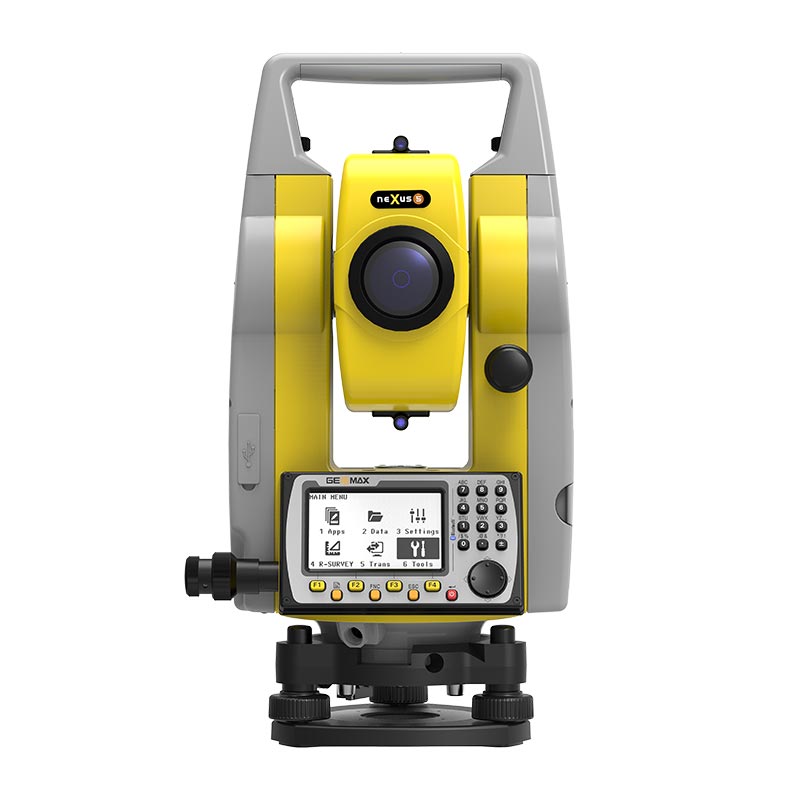

GeoMax Zoom 25

https://geoinfodoo.odoo.com/web/image/product.template/1386/image_1920?unique=5863908
(0 review)

Included:
• GeoMax Zoom25, 1″ Manual Total Station, neXus5 Reflector- and 500 m reflectorless EDM
• full alphanumeric keyboard with black & white display 1x
• GeoMax Pro Onboard Field Software x1
• Internal Bluetooth Comming with: USB and USB Mini communication port and USB Memory Stick
• pouch with tools x1
• Protective Cover
• Multilingual Quick GuideCarrying Case
• ZBA400 Li-Ion Battery 4.4Ah ZCH201
• Charger for ZBA201 & ZBA400 Li-Ion batteries
• ZTR101 Standard Tribrach without optical plummet, black

The enhanced design of Zoom25 protects the instrument against dust and water jets from any direction even under low temperatures down to -30°C. A fast, simple and flexible data transfer is ensured by the incorporated RS232, USB and Bluetooth ® technology.

4748.00 € 4748.0 EUR 4748.00 € Tax Excluded

4748.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Angular accuracy
  • Reflectorless
  • Compensation
  • Distance measurement on prism
  • Weight
  • Keyboard
  • Display
  • Data recording
  • Interface/ports
  • Camera
  • Operating time
  • Type of plummet
  • Operating system
  • Type of use
  • Smart station/rover
  • Software
  • Warranty
  • Red pointer footprint

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Product Description - Total Station GeoMax Zoom 25

neXus5 EDM


With 500 m non-prism range, you are ensured high precision and reliability.

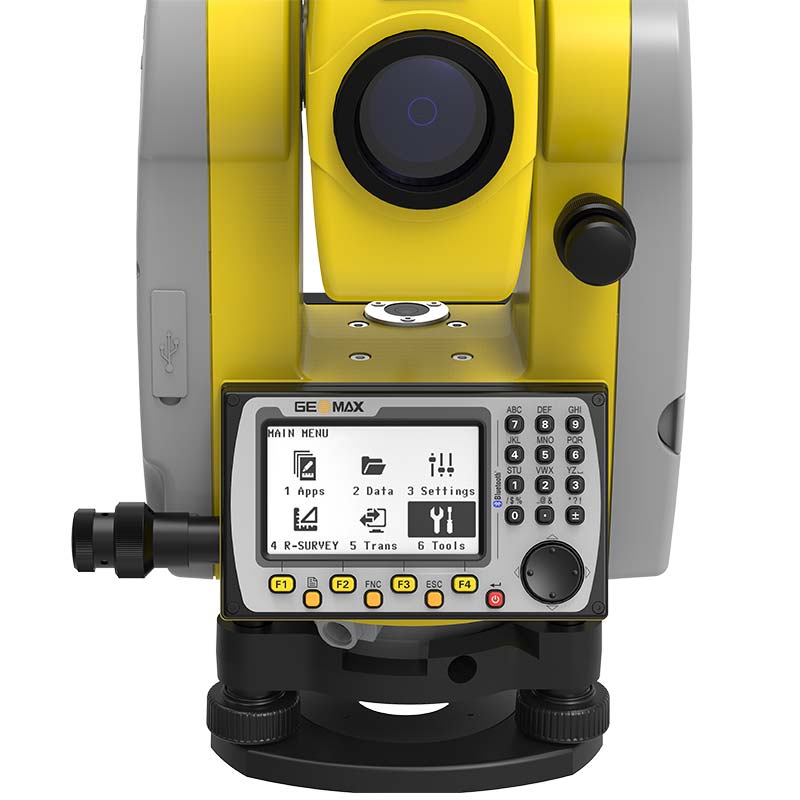

Advanced black and white display


With the largest display and highest resolution in class, the Zoom25's ergonomic design ensures you get the job done.

Advanced software


With an intuitive user interface and graphical guidance, the Zoom25 comes with an advanced application package.

Powerful application package


Intuitive to operate on a large, high resolution display, combined with an extra-long battery life, the Zoom25 makes you more productive than ever before.

Specifications

Angular accuracy 5" ili 2" ili 1"
Brand GeoMax International GmbH
Reflectorless 500 m
Compensation Quadruple axis
Distance measurement on prism Standard mode: 3500 m
Weight 5.1kg (incl.battery & tribach)
Keyboard Full alphanumeric; 35 keys; illuminated (2nd optional)
Display High resolution (280×160 pixel), 8 lines x 30 characters, illuminated
Data recording Internal memory 50,000 pts, USB stick
Interface/ports External power, Internal Bluetooth®, Serial, USB
Camera No
Operating time 7-10h
Type of plummet Laser point, adjustable brightness, accuracy 1.5 mm at 1.5 m instrument height
Operating system Microsoft® Windows® CE 6.0
Type of use Automatic, Manual, Motorized
Smart station/rover Yes
Software GeoMax On board, X-Pad Ultimate Survey
Warranty 1 year
Red pointer footprint 8x20 mm at 50 m
