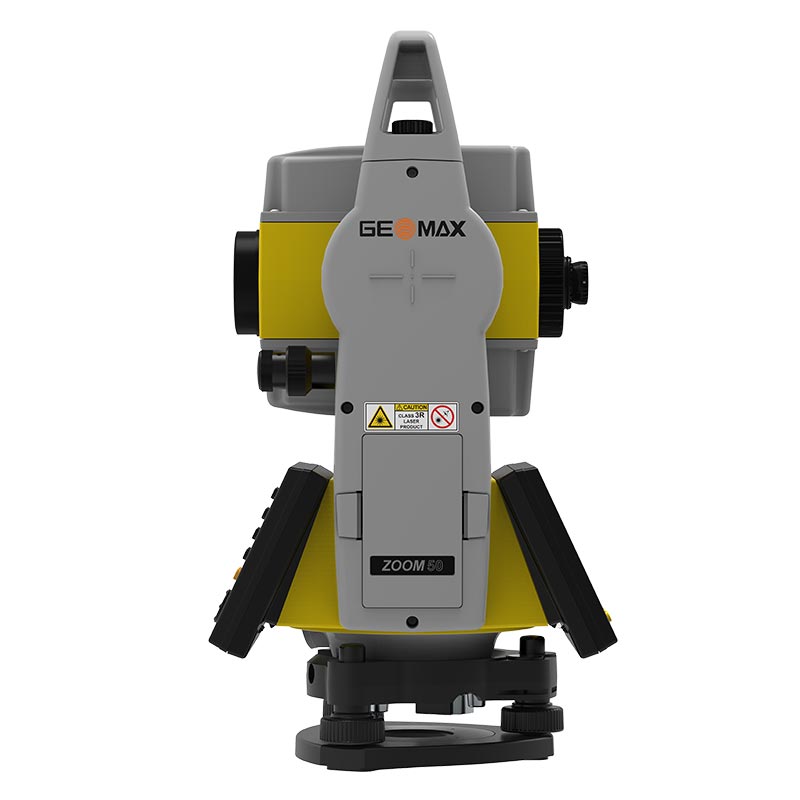

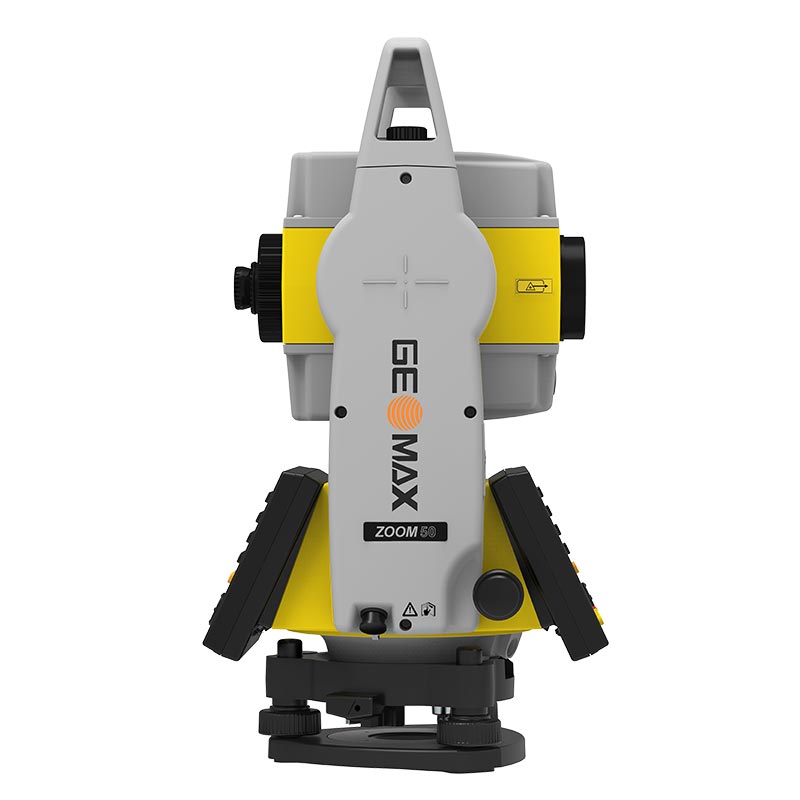

GeoMax Zoom 50
Included:
• 865968 - GeoMax Zoom50, 1" Manual Total Station, accXess10 Reflector- and 1000 m reflectorless EDM, 1 full alphanumeric keyboard with Q-VGA Colur & Touch display, GeoMax Pro Onboard Field Software, internal Bluetooth, USB Host and RS232 communication port, USB Memory Stick, 1 pouch with tools, 1 Protective Cover, 1 Plumb Bob,1 Multilingual Quick Guide and 1 Carrying Case. x1
• 776093 - ZBA400, Li-Ion Battery 4.4Ah x1
• 766872 - ZCH201 Charger for ZBA201 & ZBA400 Li-Ion batteries x1
• 765617 - ZTR101 Standard Tribrach without optical plummet, black x1
With the proven accXess technology, the Zoom50 features an intelligent distance measurement engine designed for outstanding range, speed and highest accuracy even under tough conditions.
The longer measurement range means a wider operational coverage and significant less time lost with switching setups. The new PowerLock protection mechanism prevents use by unauthorized persons and makes it hard to steal.
All this in combination with the extra-wide colour touchscreen, inbuilt Bluetooth®, USB memory stick support.
Product Description - Total Station GeoMax Zoom 50

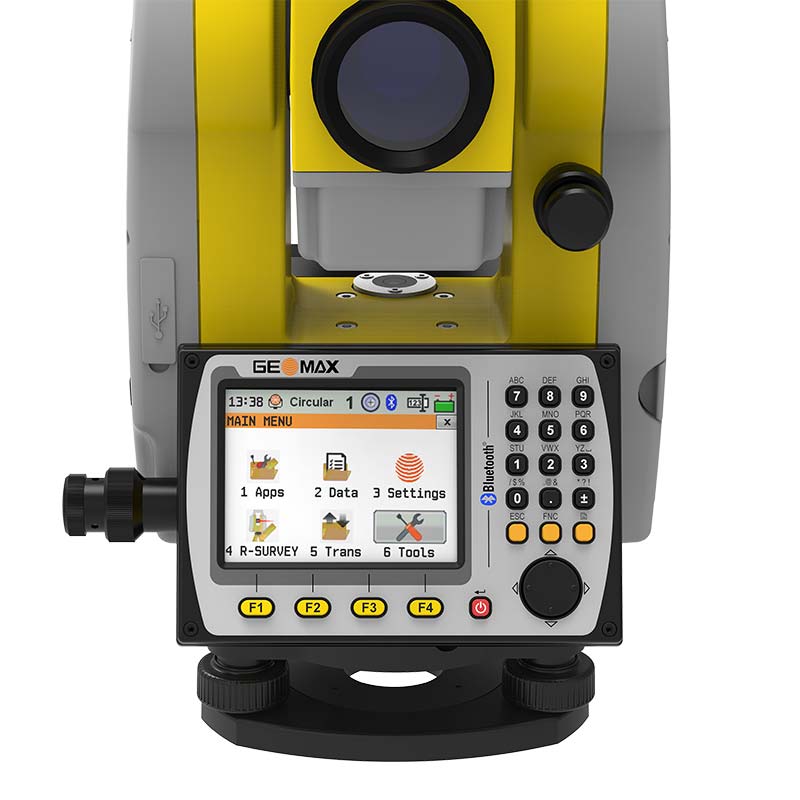

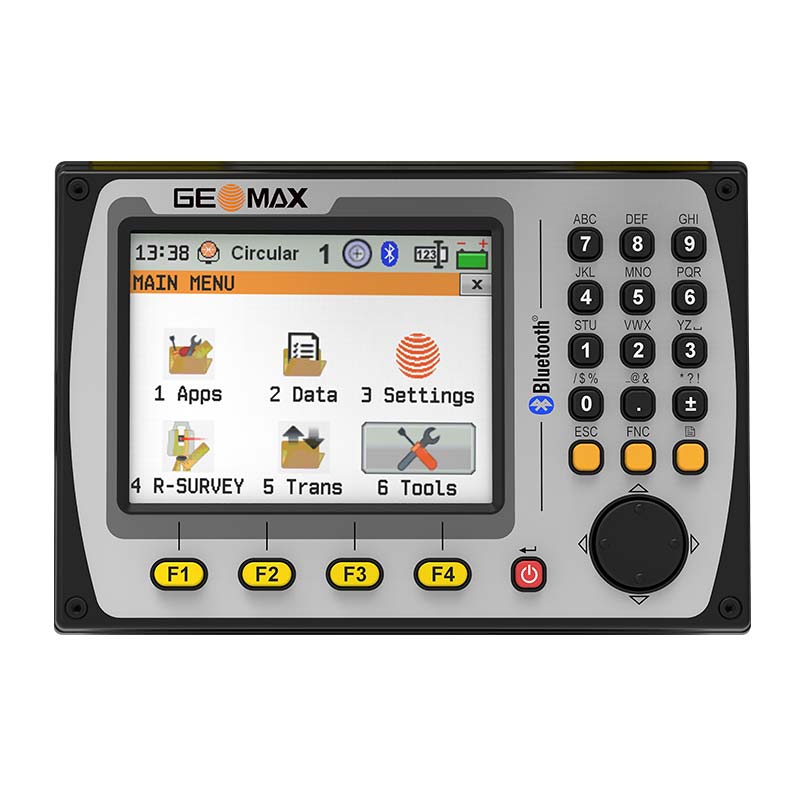

Colour and touch screen
The large 3.5″ (9 cm) Q-VGA display, you'll have a crystal-clear experience. Super fast navigation gets your job done quicker.
Fully featured application package
The Zoom50 includes advanced applications, such as Road 3D and Traverse, making it the true flagship of the GeoMax manual total station family.
Superior accXess10 EDM
With a 1,000 m non-prism range, you are provided the highest reliability and accuracy. Measure the hardest of targets with the pin-size laser beam.
Superior software
With intuitive software built into the Zoom50, you can work in versatile and enhanced applications. PowerLock theft protection makes would-be thieves think twice about swiping your equipment.
Specifications
| Angular accuracy | 5" ili 2" ili 1" |
| Reflectorless | 500 m ili 1000 m |
| Compensation | Quadruple axis |
| Distance measuremetn on prism | Long mode: >10,000 m, Standard mode: 3500 m |
| Red pointer footprint | 8x20 mm at 50 m |
| Weight | 5.1kg (incl.battery & tribach) |
| Keyboard | Full alphanumeric; 35 keys; illuminated (2nd optional) |
| Display | 3.5” Quarter-VGA colour touch screen (320×240 pixel), 10 lines x 30 characters, self heating, illuminated |
| Data recording | Internal memory 50,000 pts, USB stick |
| Interface/ports | External power, Internal Bluetooth®, Serial, USB |
| Camera | No |
| Operating time | 7-10h |
| Type of plummet | Laser point, adjustable brightness, accuracy 1.5 mm at 1.5 m instrument height |
| Operating system | Microsoft® Windows® CE 6.0 |
| Type of use | Automatic, Manual, Motorized |
| Smart station/rover | Yes |
| Software | External X-Pad Ultimate Survey |
| Warranty | 1 year |
