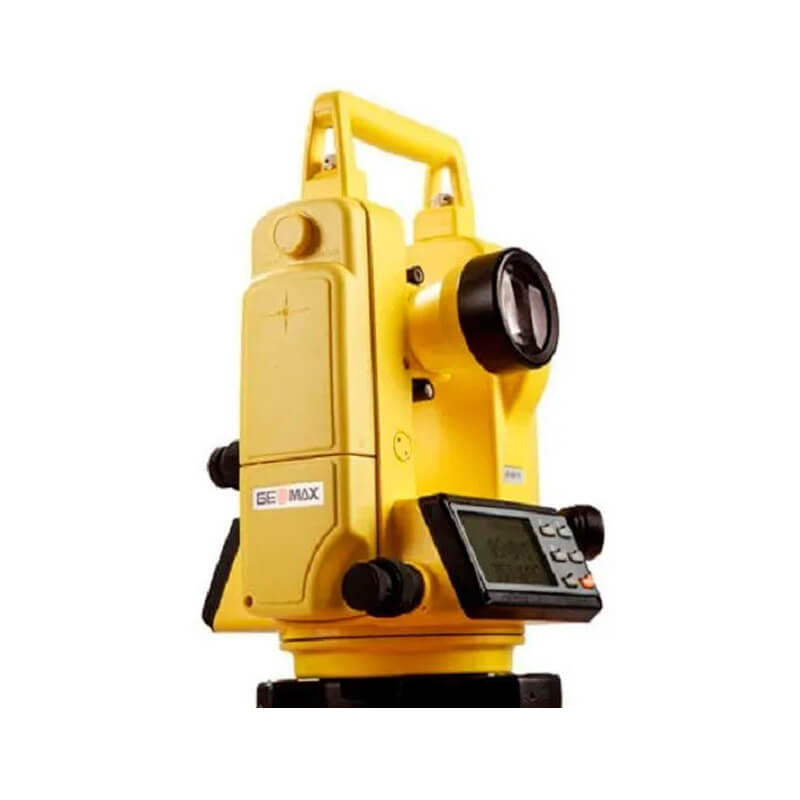

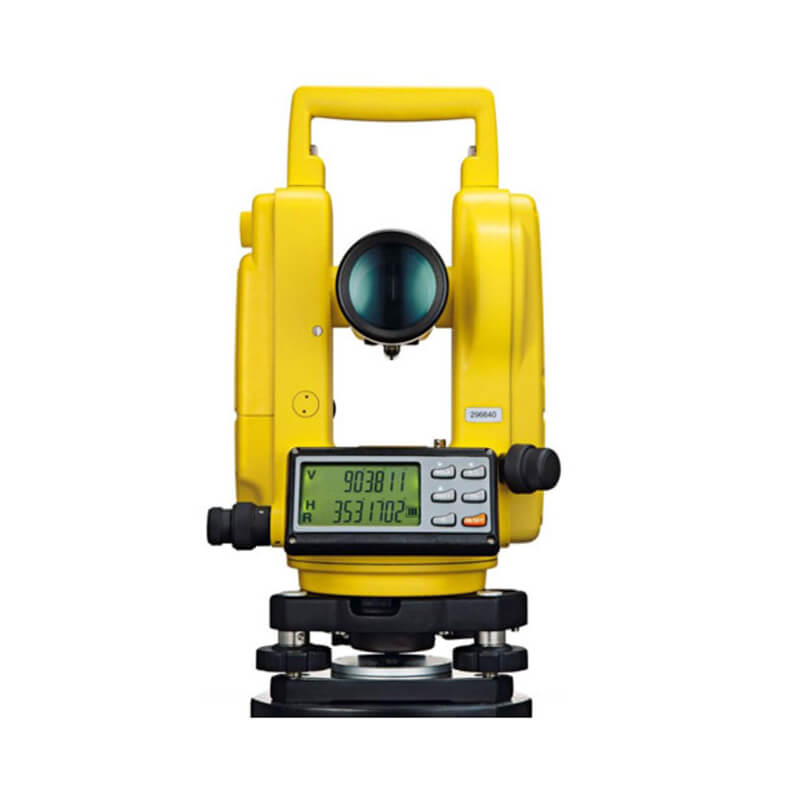

GeoMax Zipp 02, Digital Electronic Theodolite 2" with laser plummet
Included:
• Hard Carrying Case
• Tribrach
• Rechargeable Battery
• Charger
• Alkaline Battery Cassette
Product Description - GeoMax Zipp 02, digital Electronic Theodolite 2''
Closing the gap, Zipp02: For all your general construction tasks requiring accurate angle measurement. Affordable, easy to use, flexible – simply “Works when you do”.
With vertical compensation and 2″ accuracy the Zipp02 provides you with the precision required for your most demanding jobs for an affordable price without adding complexity.
Various display modes, hold and set zero for horizontal angle, a variation of measurement units, simple distance measurement via stadia lines make an easy operation with only six keys.
Visible laser plummet enables you to set up over a point faster and easier than ever.
The Zipp02 is the tool of your choice when it comes to checking angles, alignments, grade work and short range levelling.
Specifications
Brand | GeoMax International GmbH |
Precision | 2'' |
Display | 1” or 5”, DEG (360° 00’ 00”), GON (400), MIL (6400), V / %, Double side large character back-lit LCD |
Keyboard | 6 one touch button functions |
Magnification | 30X |
Objective aperature | 45 mm (1.7 in) |
Minimum focusing distance | 1.35 m (4.43 ft) |
Multiplication factor | 100 |
System | Automatic vertical compensator, User set On/Off |
Working range | +/- 3' |
Laser class | Visible laser point |
Accuracy | 1.5 mm at 1.5 m instrument height |
Weight | 4.5 kg (9.9 lb) |
External power supply | Rechargeable NiMH, replacement alkaline battery pack |
Warranty | 1 year (Extendable for up op 2 years more) |
